Designed with the full expertise of Airospot to deliver the best wireless performance.
Integrated with Airospot Cloud Services (ACS) and powered by Airospot Intelligence (AI).
Model | Airospot AP 320N |
---|---|
Hardware Specification | QCA9533, 64MB DDR, 16MB Flash; |
Wireless Standards | IEEE802.11b/g/n |
Antenna | 2×3dBi built-in Antenna |
RF Parameters |
Power: 110mW (19dBm) Receiving Sensitivity: -96dBm Working Frequency: 2.4GHz-2.4835GHz |
Physical Ports | 1× 10/100Mbps LAN Port, 1× 10/100Mbps WAN Port |
Protection Level | 6kV Lightning Protection, IP41 Level |
Package Size/Weight | 330×224×45mm; 0.30kg |
Working Environment |
Working Temperature: -10°C~65°C Storage Temperature: -40°C~70°C Working Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing |
Feature | Standard Access Point | Pro Access Point |
---|---|---|
AiroUI | Basic | Advanced |

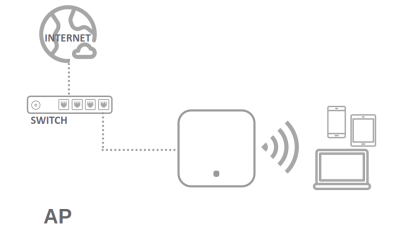

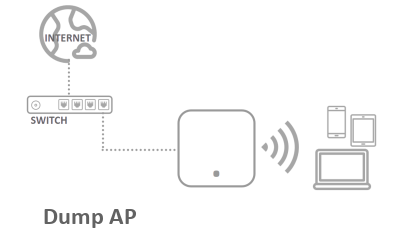

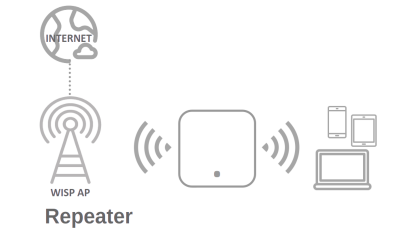

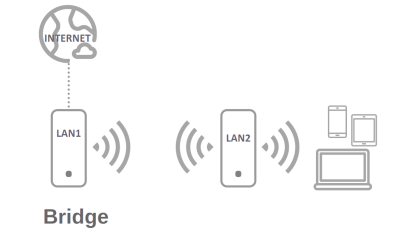

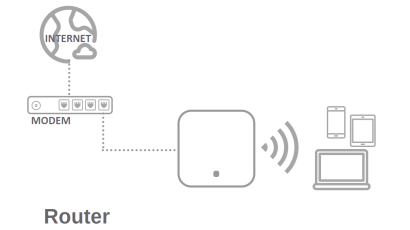

Operating Modes | 4 Modes: Router, AP, Repeater, Bridge | 5 Modes: Router, AP, Repeater, Bridge, Dump AP High Performance |
Status Dashboard | Metrics: User Count, Download/Upload, CPU/Memory Trends, Interface Status, TCP/UDP Connections |
Metrics: User Count, Download/Upload, CPU/Memory Trends, Interface Status, TCP/UDP Connections |
Graphics & Logs | Load Graphics, Wireless Graphics, Traffic Graphics, Connections Graphics, Log System, Exportable Reports |
Load Graphics, Wireless Graphics, Traffic Graphics, Connections Graphics, Log System, Exportable Reports |
Wireless Settings | SSID Management, WPA2 WPA3 Support, Auto Channel Selection, Wireless MAC Filtering, Radio Power Selection, Multi-SSID Support, Basic Mobility |
Advanced RF Management, WPA2 WPA3 Support, Enterprise Radius Support, Channel Management with AI Model, Wireless MAC Filtering, Power Management with AI Model: Eco Mode, Normal Mode, High Performance Mode, Sleep Mode, Multi-SSID Support, Advanced Mobility/Fast Roaming |
Firewall | Basic Allow/Block Rules |
Advanced Firewall Rules:
DMZ, Port Forward, Port Open, DDOS Protection |
System Settings |
Reboot / Scheduled Reboot,
Firmware Updates Backup/Restore Configuration |
Reboot / Scheduled Reboot,
Firmware Updates Backup/Restore Configuration Cloud Updates |
Cloud Integration | - | Full Cloud Management and Centralized Monitoring |
Upgrade Options | Manual Upgrade |
Cloud Upgrade,
Hotspot Upgrade |
Hotspot Features | - | Captive Portal, Bandwidth Limiting, User Authentication |
LAN/WAN Config. | VLAN Support, Basic LAN/WAN Configuration |
VLAN Support, Advanced Routing and VLAN Configurations |
VLAN Support | Included | Included |
QoS (Quality of Service) | Included | Included (Per User/Device Bandwidth Control) |
Mesh Networking | Included | Included |
Wireless MAC Filtering | Included | Included |
LED Preset System | Color and Trigger Action Presets | Advanced Presets |
Application | - | Automatic System Manager |
iPerf Speed Test | Included | Included |
